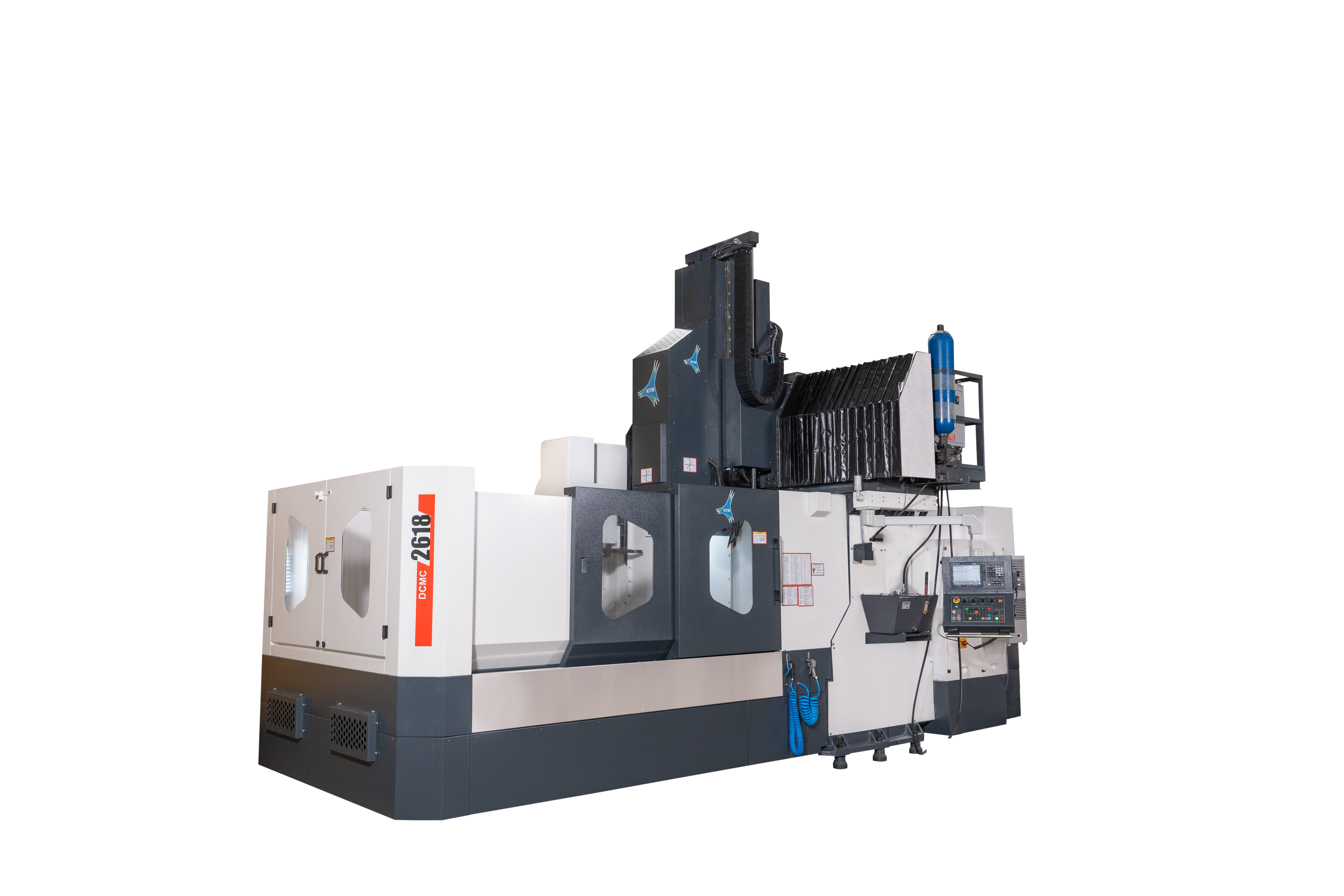

KTM Double Column Machining Centers Series

1. Torque Tube Bed Design Construction

2. Dual Casting Wall Construction with Inverted Y type Column Design

3. Ball Screw with C3 Grade , Double Nut, Long Nut and Deep Groove with Zero Backlash

4. High Precision Grade Ball /Roller Type LM Guideways with Medium Preloaded Blocks

5. Digital Servo Spindle Motor

6. Taiwan Make High Speed Rigid Spindle with P4 Class Angular Contact Ball Bearings ( 2+2 )

7. 20 Tools ATC with lowest tool to tool time

8. All Telescopic Cover in Stainless Steel Grade ( Corrosion Free )

9. Powder Coated Machine Guard

10. Electric Panels with Air Conditioner

11. High Pressure Coolant Unit

12. Auto Lubrication Unit

DESCRIPTION	Unit	DCMC 2012	DCMC 2214	DCMC 2516	DCMC 3022	DCMC 3525	DCMC 4528
Table Size	mm	2000*1000	2200*1200	2400 x 1350	2800*2000	3200 X 2200	3750 X 2300
T-Slot Dimension	mm	522150	722160	8 x 22 x 160	1322160	13 x 22 x 160	14 x 22 x 160
Distance from Floor to Table	mm	900	940	850	900	920	960
Max.Load on Table	kgf	5000	5000	6000	10000	10000	14000
Distance Between Two Columns	mm	1250	1450	1650	2300	2600	2875
X-Axis Travel	mm	2000	2200	2500	3000	3500	4500
Y-Axis Travel	mm	1200	1400	1600	2200	2500	2800
Z-Axis Travel	mm	800	800	800[1000]	800(1000)	800[1000]	800[1000]
Dis.From Spindle Face to Table Top(Min-Max)	mm	150	200	200	200	200	200
Rapid Traverse(x,y & z Axis)	m/min	15/15/15	20/20/15	24/20/15	20/20/15	20/20/15	20/20/15
Cutting Feed	m/min	8	10	10	10	10	10
Spindle Nose		BT-50	BT-50	BT-50	BT-50	BT-50	BT-50
Spindle Motor Power-Siemens	kw	18.5/22	18.5/22	15/18	22/18.5	18.5/22	18.5/22
Spindle Motor Power-Mitsubishi	kw	18.5/22	18.5/22	15/18.5	22/18.5	18.5/22	18.5/22
Spindle Speed Range	rpm	0.6	0.6	0-6000	0.6	0-6000	0-6000
Number of Tool		20	20	20	20	20	20
Max.Tool Dia.Pockets	mm	125/200	125/200	125/200	125/200	125/200	125/200
Max.Tool Weight	kg	15	15	20	15	20	20
Max.Tool Length	mm	350	350	400	350	400	400
Positioning Uncertainty(P)	mm	0.008	0.02	0.02	0.02	0.02	0.02
Repeatability(ps medium)	mm	0.02	0.008	0.01	0.01	0.012	0.015
Weight(Approx.)	kg	16000	20000	21000	28000	31500	40500
