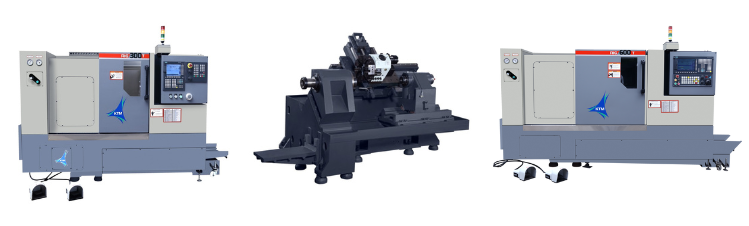

RIG Large Series CNC Lathe

1. Dual Torque Tube Design with 45° True Slant Bed Construction

2. Ball Screw with C3 Grade , Double Nut, Long Nut and Deep Groove with Zero Backlash

3. High Precision Grade Ball /Roller Type LM Guidays with Medium Preloaded Flange Type Blocks

4. Digital Servo Spindle Motor

5. Cartridge Type High Speed Rigid Spindle with P4 Class Angular Contact Ball Bearings ( 3+2 )

DETAILS	SPECIFICATION	UNIT	RIG 800	RIG 800+	RIG 1200	RIG 1200+
CAPACITY	Swing Over the Bed	mm	500	550	500	550
	Swing Over Carriage	mm	350	350	350	350
	Maximum Turning Dia.	mm	360	360	360	360
	Maximum Turning Length	mm	810	810	1205	1205
	Chuck Size Std./Optional	mm	200/250	250/300	200/250	250/300
SPINDLE	Spindle Nose	Type	A2-6	A2-8	A2-6	A2-8
	Spindle Bore	mm	63	86	63	86
	Maximum Bar Capacity Through Spindle	mm	51	75	51	75
	Spindle Motor Power (fanuc/Mitsubishi)	kw	7.5/11	11/15	7.5/11	11/15
	Spindle Speed Range Min.-Max.	rpm	50-3500	50-2500	50-3500	50/2500
STROKE	X-Axis Stroke	mm	185	185	185	185
	Z-Axis Stroke	mm	825	800	1245	1220
	Maximum Cutting Feed Rate(X/Z)	mm/min	8000	8000	8000	8000
	Rapid Feed Rate(X/Z)	mm/min	24000	24000	24000	24000
TAILSTOCK	Quill Diameter	mm	85	100	85	100
	Quill Stroke	mm	120	120	120	120
	Taper in Quill	Type	MT-4	MT-5	MT-4	MT-5
	Maximum Quill Thrust	kgf	1500	1800	1500	1800
	Tail Stock Body Travel	mm	710	710	1100	1100
TURRET	Turret Size	size	80	100	100	100
	Turret Type	Type	HYD.	HYD.	HYD.	HYD.
	Numbers of Tool Stations	nos.	8	8	8	8
	Maximum Boring Bar Diameter	mm	40	40	40	40
	Tool Shank	mm x mm	25 x 25	25 x 25	25 x 25	25 x 25
ACCURACY	Positioning Accuracy X/Z	mm	+/-0.003	+/-0.003	+/-0.003	+/-0.003
ACCURACY	Positioning Repeatbility X/Z	mm	0.008	0.008	0.008	0.008
TANK CAPACITY	Hydraulic Tank Capacity	Liter	40	40	40	40
	Lubrication Tank Capacity	Liter	3	3	3	3
	Coolant Tank Capacity	Liter	160	160	220	220
OTHERS	Machine Over All Dimensions(L x W x H)	mm x mm x mm	3250 x 1850 x 1650	3250 x 1850 x 1650	3500 x 2050 x 1650	3500 x 2050 x 1650
OTHERS	Machine Weight(Approx)	Kg	4600	5000	5500	5900
CNC CONTROL SYSTEM	Mitsubishi ,Fanuc ,Siemens
