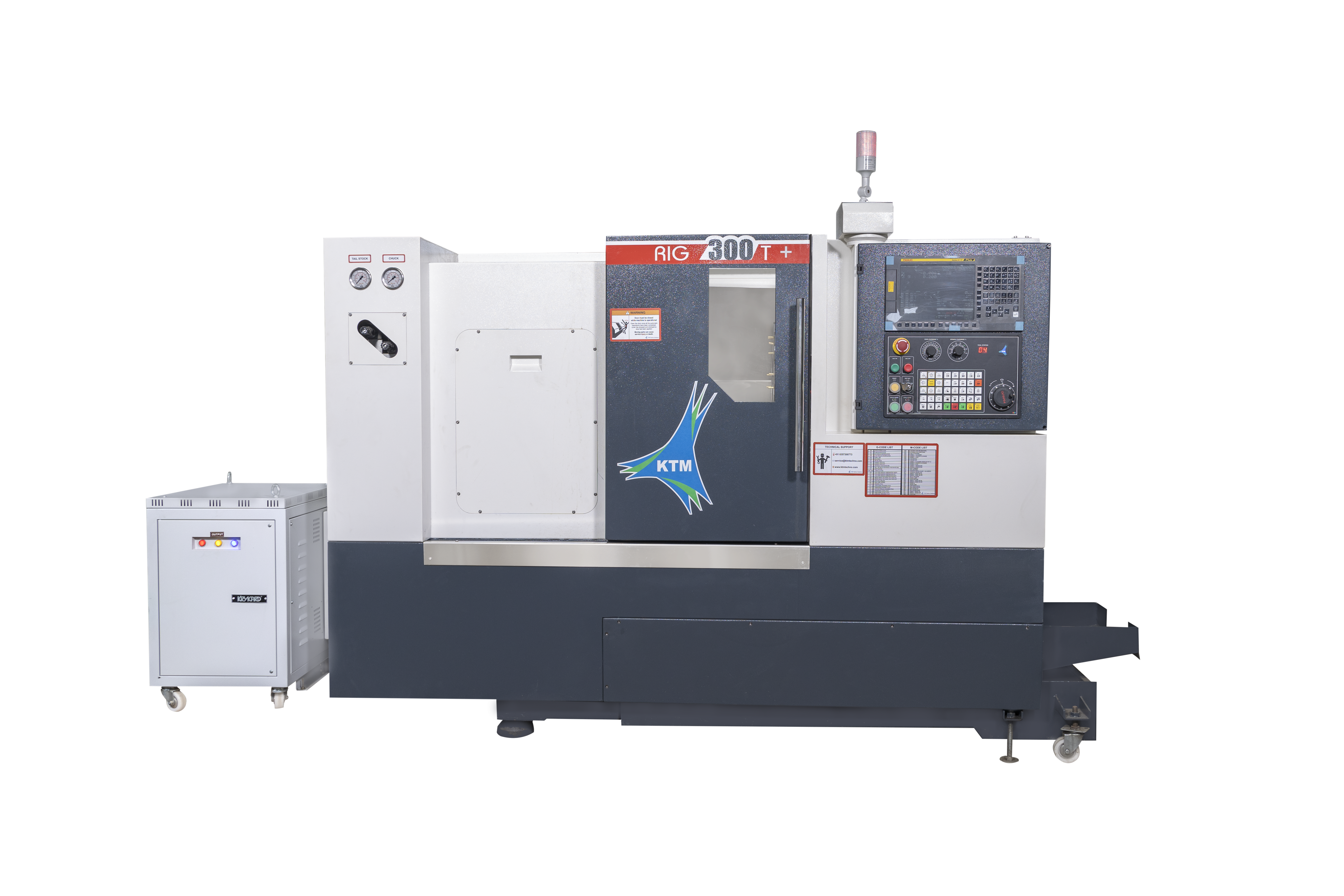

RIG Small Series CNC Lathe

1. Dual Torque Tube Design with 45° True Slant Bed Construction

2. Ball Screw with C3 Grade , Double Nut, Long Nut and Deep Groove with Zero Backlash

3. High Precision Grade Ball /Roller Type LM Guidays with Medium Preloaded Flange Type Blocks

4. Digital Servo Spindle Motor

5. Cartridge Type High Speed Rigid Spindle with P4 Class Angular Contact Ball Bearings ( 3+2 )

DETAILS	SPECIFICATION	UNIT	RIG 300	RIG 300 +
CAPACITY	Swing Over the Bed	mm	400	400
	Swing Over Carriage	mm	250	300
	Maximum Turning Dia.	mm	300	300
	Maximum Turning Length	mm	300	300
	Chuck Size Std./Optional	mm	165/200	200/250
SPINDLE	Spindle Nose	Type	A2-5	A2-6
	Spindle Bore	mm	50	63
	Maximum Bar Capacity Through Spindle	mm	40	51
	Spindle Motor Power (Fanuc/Mitsubishi))	kw	5.5/7.5	7.5/11
	Spindle Speed Range Min.-Max.	rpm	50-4000	50-3500
STROKE	X-Axis Stroke	mm	160	160
	Z-Axis Stroke	mm	305	305
	Maximum Cutting Feed Rate(X/Z)	mm/min	10000	10000
	Rapid Feed Rate(X/Z)	mm/min	24000	24000
TAILSTOCK	Quill Diameter	mm	85	85
	Quill Stroke	mm	120	120
	Taper in Quill	Type	MT-4	MT-4
	Maximum Quill Thrust	kgf	1500	1500
	Tail Stock Body Travel	mm	220	220
TURRET	Turret Size	size	80	80
	Turret Type	Type	HYD.	HYD.
	Numbers of Tool Stations	nos.	8	8
	Maximum Boring Bar Diameter	mm	40	40
	Tool Shank	mm x mm	25 x 25	25 x 25
ACCURACY	Positioning Accuracy X/Z	mm	±0.003	±0.003
ACCURACY	Positioning Repeatability X/Z	mm	0.008	0.008
TANK CAPACITY	Hydraulic Tank Capacity	Liter	40	40
	Lubrication Tank Capacity	Liter	3	3
	Coolant Tank Capacity	Liter	100	100
ABOUT	Machine Over All Dimensions(L x W x H)	mm x mm x mm	2700x1420x1700	2700x1420x1700
ABOUT	Machine Weight(Approx)	Kg	3200	3400
CNC CONTROL SYSTEM	Mitsubishi, Fanuc, Siemens
