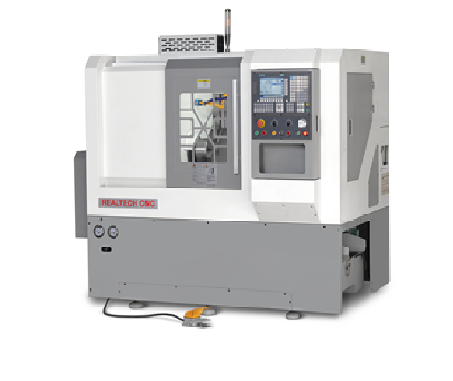

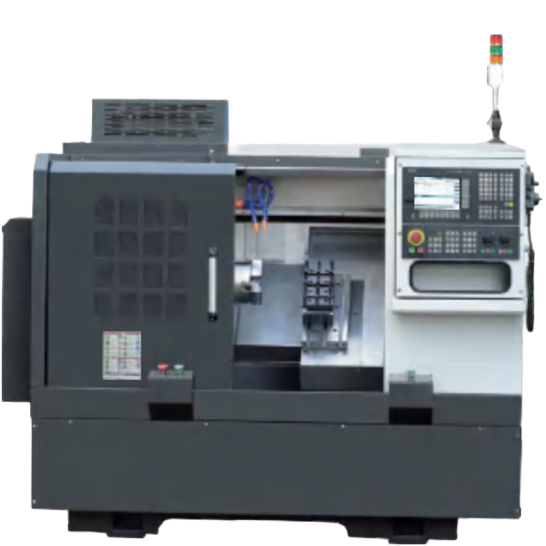

Slant Bed CK 640 / 6100

1. Affordable and Economical

2. Linear tooling

3. Less Cycle time ,High Production

4. Easy to Operate

5. Rigid Machine Due to Slant Bed Design

6. Small Footprint

SPECIFICATION	UNIT	640 SLANT	6100 SLANT
Swing Over the Bed	mm	400	400
Maximum Turning Dia.	mm	150	150
Maximum Turning Length	mm	280	280
Chuck Size	mm	165	200
X Axis Travel	mm	650	650
Z Axis Travel	mm	280	280
Spindle Nose	Type	A2-5	A2-6
Maximum Bar Capacity Through Spindle	mm	30	42
Spindle Motor Power	kw	5.5	7.5
Spindle Speed	rpm	3000	2500
Rapid Feed Rate(X/Z)	mm/min	20000	20000
Ball Screw Size X	mm	32/10	32/10
Ball Screw Size Z	mm	40/10	40/10
Linear Guideways X/Z	mm	30/35	30/35
Axis Torque X/Z	nm	7.7/7.7	7.7/7.7
Tool Cross Section	mm	20/20	25/25
Max Boring Block	mm	32	32
Positioning Uncertainty X/Z	mm	0.003	0.003
Positioning Repeatbility X/Z	mm	0.003	0.003
Total Machine Power	hp	10	12
Machine Over All Dimensions(L x W x H)	mm x mm x mm	1900x1200x1600	1900x1200x1600
Machine Weight(Approx)	Kg	2000	2100
