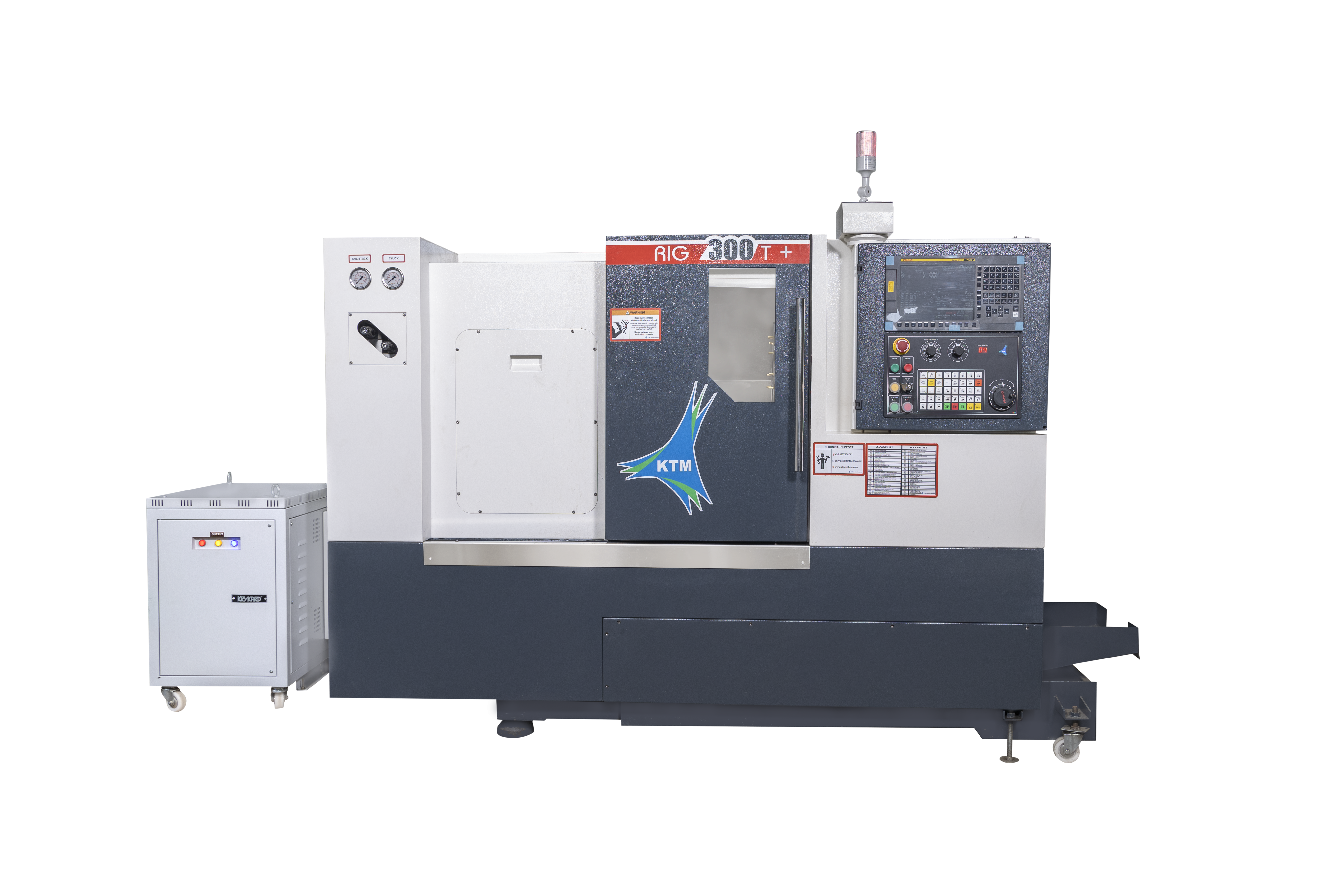

RIG Medium Series CNC Lathe

1. Dual Torque Tube Design with 45° True Slant Bed Construction

2. Ball Screw with C3 Grade , Double Nut, Long Nut and Deep Groove with Zero Backlash

3. High Precision Grade Ball /Roller Type LM Guidays with Medium Preloaded Flange Type Blocks

4. Digital Servo Spindle Motor

5. Cartridge Type High Speed Rigid Spindle with P4 Class Angular Contact Ball Bearings ( 3+2 )

DETAILS	SPECIFICATION	UNIT	RIG 500	RIG 500+	RIG 600	RIG 600+
CAPACITY	Swing Over the Bed	mm	500	500	500	550
	Swing Over Carriage	mm	300	300	350	350
	Maximum Turning Dia.	mm	300	300	360	360
	Maximum Turning Length	mm	500	480	610	610
	Chuck Size Std./Optional	mm	165/200	200/250	200/250	250/300
SPINDLE	Spindle Nose	Type	A2-5	A2-6	A2-6	A2-8
	Spindle Bore	mm	50	63	63	86
	Maximum Bar Capacity Through Spindle	mm	40	51	51	75
	Spindle Motor Power (Fanuc/Mitsubishi)	kw	5.5/7.5	7.5/11	7.5/11	11/15
	Spindle Speed Range Min.-Max.	rpm	50-3500	50-3500	50-3500	50-2500
STROKE	X-Axis Stroke	mm	510	165	185	185
	Z-Axis Stroke	mm	510	500	625	600
	Maximum Cutting Feed Rate(X/Z)	mm/min	10000	10000	8000	8000
	Rapid Feed Rate(X/Z)	mm/min	24000	24000	24000	24000
TAILSTOCK	Quill Diameter	mm	85	85	85	85
	Quill Stroke	mm	120	120	120	120
	Taper in Quill	Type	MT-4	MT-4	MT-4	MT-5
	Maximum Quill Thrust	kgf	1500	1500	1500	1800
	Tail Stock Body Travel	mm	375	375	510	510
TURRET	Turret Size	size	80	80	80	100
	Turret Type	Type	HYD.	HYD.	HYD.	HYD.
	Numbers of Tool Stations	nos.	8	8	8	8
	Maximum Boring Bar Diameter	mm	40	40	40	40
	Tool Shank	mm x mm	25 x 25	25 x 25	25 x 25	25 x 25
ACCURACY	Positioning Accuracy X/Z	mm	+/-0.003	+/-0.003	+/-0.003	+/-0.003
ACCURACY	Positioning Repeatability X/Z	mm	0.008	0.008	0.008	0.008
TANK CAPACITY	Hydraulic Tank Capacity	Liter	40	40	40	40
	Lubrication Tank Capacity	Liter	3	3	3	3
	Coolant Tank Capacity	Liter	120	120	120	120
ABOUT	Machine Over All Dimensions(L x W x H)	mm x mm x mm	2700 x 1600 x1550	2900 x 1600 x1700	3000x1700x1650	3000 x 1700 x 1650
ABOUT	Machine Weight(Approx)	Kg	3400	3500	4200	4400
CNC CONTROL SYSTEM	Mitsubishi ,Fanuc ,Siemens
