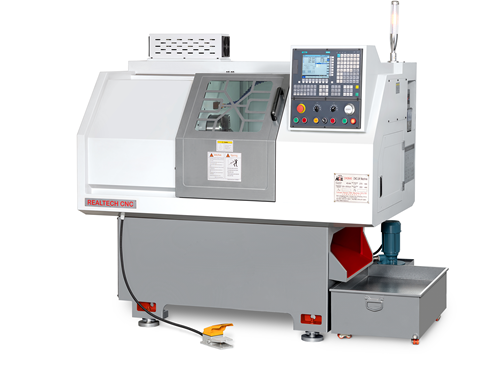

Flat Bed Linear CK 632 / 640 / 6100

1. Affordable and Economical

2. Linear tooling

3. Less Cycle time ,High Production

4. Easy to Operate

5. Small Footprint

SPECIFICATION	UNIT	CK 632	CK 640	CK 6100
Swing Over the Bed	mm	400	400	450
Maximum Turning Dia.	mm	135	165	240
Maximum Turning Length	mm	180	210	300
Chuck Size	mm	135	165	200
X Axis Travel	mm	540	500	500
Z Axis Travel	mm	180	210	300
Spindle Nose	Type	A2-4	A2-5	A2-6
Maximum Bar Capacity Through Spindle	mm	30	32	42
Spindle Motor Power	kw	3.7	5.5	7.5
Spindle Speed	rpm	4500	2800	2500
Rapid Feed Rate(X/Z)	mm/min	24000	20000	20000
Ball Screw Size X	mm	25/8	25	32/8
Ball Screw Size Z	mm	32/10	32/8	32/8
Linear Guideways X/Z	mm	30/30	32/35	32/35
Axis Torque X/Z	nm	6/6	6/6	7.7/7.7
Tool Cross Section	mm	20/20	20/20	25/25
Max Boring Block	mm	32	32	32
Positioning Uncertainty X/Z	mm	0.003	0.003	0.003
Positioning Repeatbility X/Z	mm	0.003	0.003	0.003
Total Machine Power	hp	10	10	12
Machine Over All Dimensions(L x W x H)	mm x mm x mm	1800x1700x1400	1900x1200x1600	1900x1200x1600
Machine Weight(Approx)	Kg	1500	1500	1800
