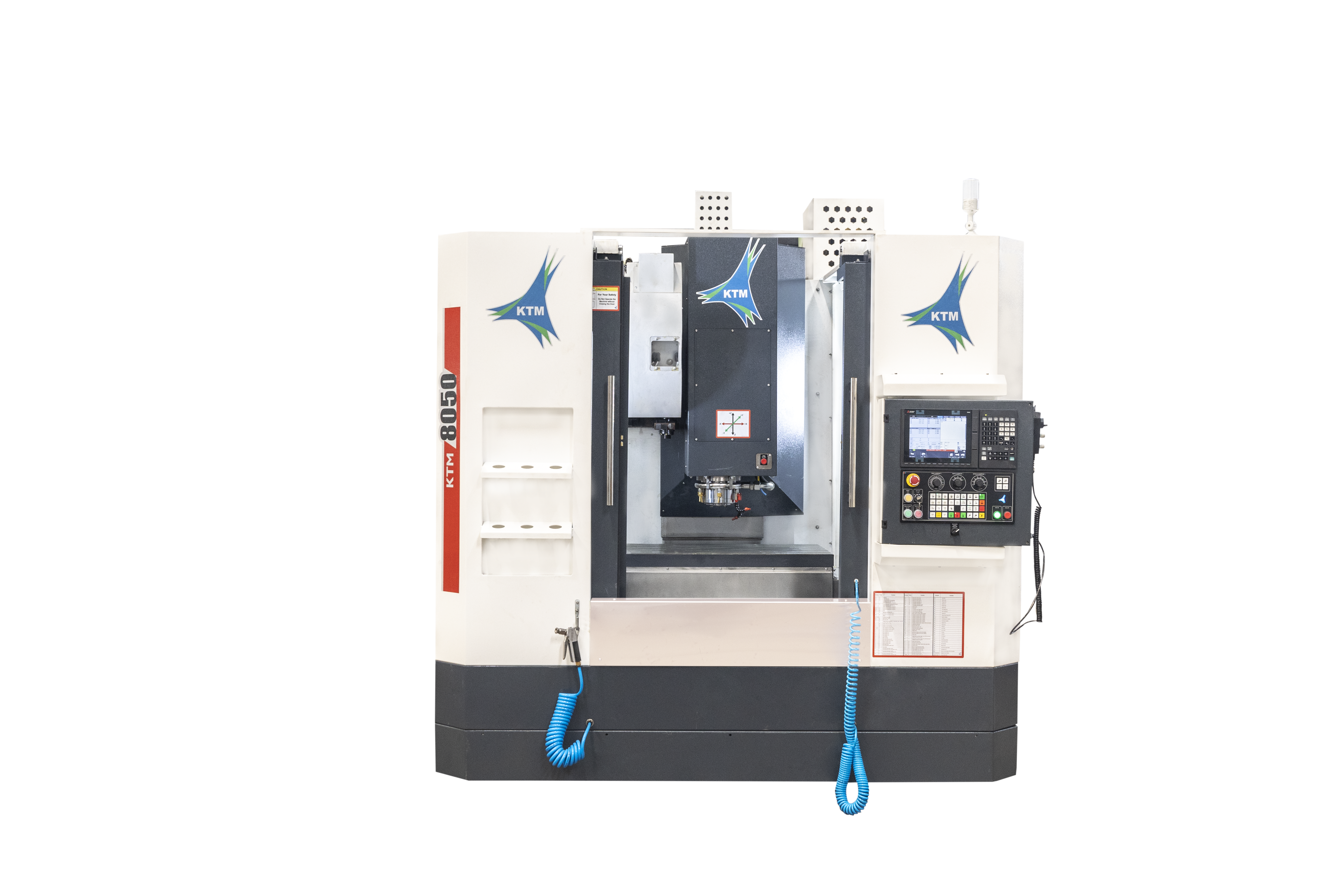

KTM Small Series VMC

1. Torque Tube Bed Design Construction

2. Dual Casting Wall Construction with Inverted Y type Column Design

3. Ball Screw with C3 Grade , Double Nut, Long Nut and Deep Groove with Zero Backlash

4. High Precision Grade Ball /Roller Type LM Guideways with Medium Preloaded Blocks

5. Digital Servo Spindle Motor

6. Taiwan Make High Speed Rigid Spindle with P4 Class Angular Contact Ball Bearings ( 2+2 )

7. 20 Tools ATC with lowest tool to tool time

8. All Telescopic Cover in Stainless Steel Grade ( Corrosion Free )

9. Powder Coated Machine Guard

10. Electric Panels with Air Conditioner

11. High Pressure Coolant Unit

12. Auto Lubrication Unit

DETAILS	SPECIFICATIONS	Unit	KTM 5050	KTM 6050	KTM 8050	KTM 8060	KTM 10060
CAPACITY	Table Longitudinal Travel(X-Axis Stroke)	mm	500	600	800	800	1000
	Table Cross Travel(Y-Axis Stroke)	mm	500	500	500	600	600
	Head Stock Travel(Z-Axis Stroke)	mm	500	500	500	600	600
	Spindle Nose Face To Table Top	mm	150-650	150-650	150-650	150-750	150-750
	Distance From Floor to Table	mm	850	850	850	900	900
	Spindle Center -Cloumn Front Distance	mm	540	540	540	650	650
SPINDLE	Taper	Type	BT-40	BT-40	BT-40	BT-40	BT-40
	Speed Standard	rpm	8000	8000	8000	8000	8000
	Spindle Moto Power (Mitsubishi)	kw	5.5/7.5	7/9	9.0/11.0	9.0/11.0	9.0/11.0
FEED	Maximum Cutting Feed Rate(X/Y/Z)	mm/min	10000	10000	10000	10000	10000
FEED	Rapid Feed Rate(X/Y/Z)	mm/min	24000	24000	24000	24000	24000
TABLE	Table Size	mm	650 X 500	750X500	1000 X 550	1000 X 600	1200 X 600
	T- Slot (No/Size/Pitch)	mm	3/18/100	5/18/100	5/18/100	6/18/100	6/18/100
	Maximum load On Table	kg	500	650	800	800	1000
ATC	Tool Change System	Type	Dual Arm	Dual Arm	Dual Arm	Dual Arm	Dual Arm
	Tool Storage Capacity-std	Nos	20	20	20	20	20
	Pull Stud	Type	45 Degree	45 Degree	45 Degree	45 Degree	45 Degree
	MaxTool Dia With all pockets full	mm	80	80	80	80	80
	Max Tool Dia Adjacent Pocket Empty	mm	125	125	125	125	125
	Max Tool Length	mm	250	250	250	250	250
	Max Tool Weight	kg	8	8	8	8	8
	Tool to tool Time	sec	2	2	2	2	2
ACCURACY	Positioning Repeatability X/Y/Z	mm	0.003	0.003	0.003	0.003	0.003
ACCURACY	Positioning Accuracy X/Y/Z	mm	0.008	0.008	0.008	0.008	0.008
CNC CONTROL SYSTEM	Mitsubishi,Fanuc,Siemens
