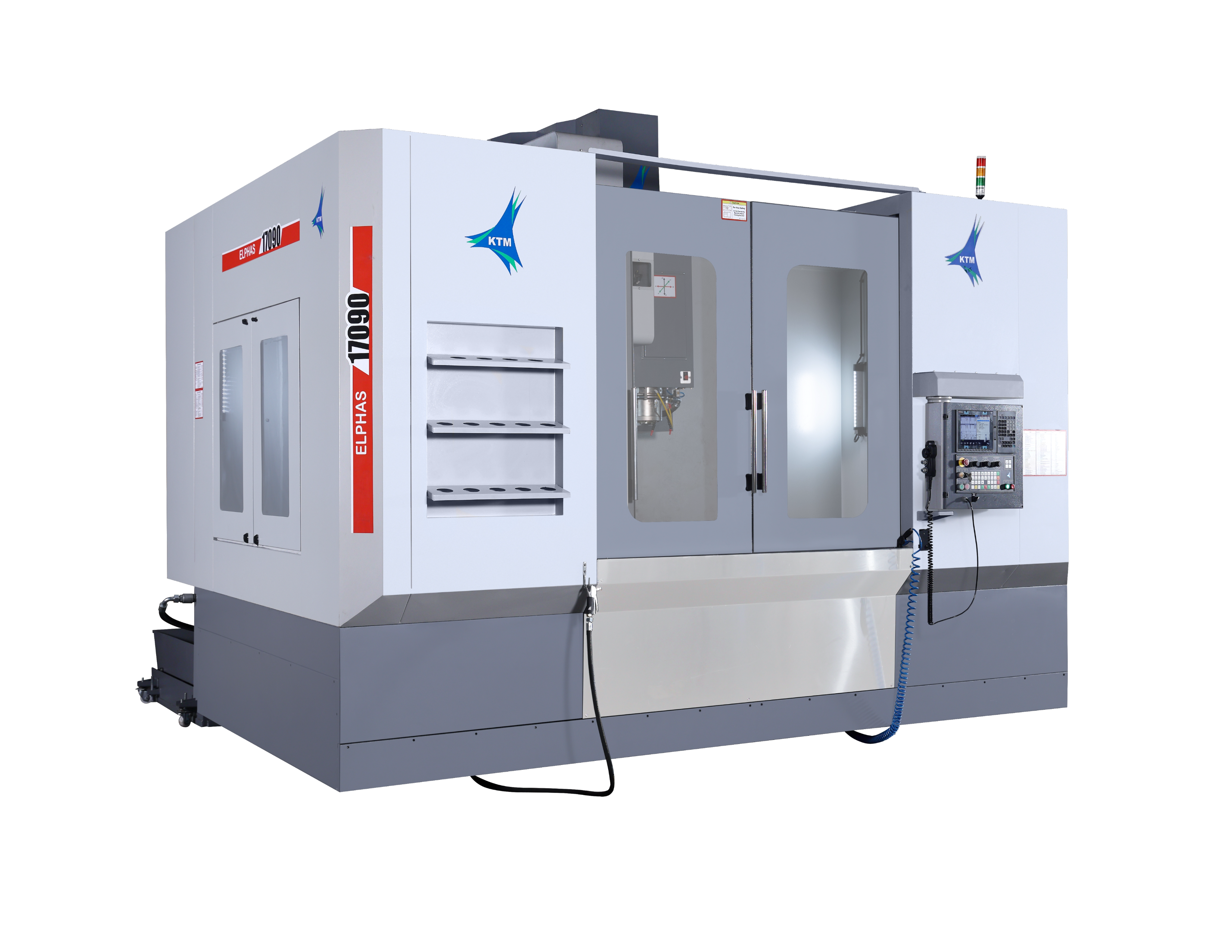

KTM Large Series VMC

1. Torque Tube Bed Design Construction

2. Dual Casting Wall Constuction with Inverted Y type Column Design

3. Ball Screw with C3 Grade , Double Nut, Long Nut and Deep Groove with Zero Backlash

4. High Precision Grade Ball /Roller Type LM Guidays with Medium Preloaded Blocks

5. Digital Servo Spindle Motor

6. Taiwan Make High Speed Rigid Spindle with P4 Class Angular Contact Ball Bearings ( 2+2 )

7. 20 Tools ATC with lowest tool to tool time

8. All Telescopic Cover in Stainless Steel Grade ( Corrosion Free )

9. Powder Coated Machine Guard

10. Electric Panel with Air Conditioner

11. High Pressure Coolant Unit

DETAILS	SPECIFICATIONS	UNIT	ELPHAS 15080	ELPHAS 17090	ELPHAS 21090
CAPACITY	Table Longitudinal Travel(X-Axis Stroke)	mm	1500	1700	2100
	Table Cross Travel(Y-Axis Stroke)	mm	800	900	900
	Head Stock Travel(Z-Axis Stroke)	mm	800	900	900
	Spindle Nose Face To Table Top	mm	150-950	150-1050	150-1050
	Distance From Floor to Table	mm	1000	1000	1100
SPINDLE	Taper	Type	BT-50	BT-50	BT-50
	Speed Standard	rpm	6000	6000	6000
	Spindle Motor Power(Mitsubishi)	kw	11/15	11/15	18/22
FEED	Maximum Cutting Feed Rate(X/Y/Z)	mm/min	10000	10000	10000
FEED	Rapid Feed Rate(X/Y/Z)	mm/min	20	20	20
TABLE	Table Size	mm	1700 x 850	1700 x 850	2400 x 880
	T- Slot (No/Size/Pitch)	mm	6 x 18 x 125	6 x 18 x 125	6 x 22 x 150
	Maximum load On Table	kg	1800	1800	2300
ATC	Tool Change System	Type	Dual Arm	Dual Arm	Dual Arm
	Tool Storage Capacity-std	Nos	20	20	20
	Pull Stud	Type	45 Degree	45 Degree	45 Degree
	MaxTool Dia With all pockets full	mm	80	80	80
	Max Tool Dia Adjacent Pocket Empty	mm	125	125	125
	Max Tool Length	mm	250	250	250
	Max Tool Weight	kg	8	8	8
	Tool to tool Time	sec	2	2	2
ACCURACY	Positioning Repeatability X/Y/Z	mm	0.015	0.015	0.015
ACCURACY	Positioning Accuracy X/Y/Z	mm	0.008	0.008	0.008
CNC CONTROL SYSTEM	Mitsubishi, Fanuc, Siemens
