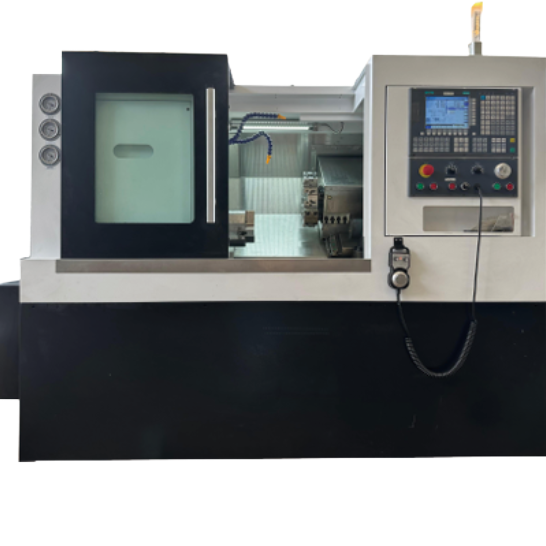

RT - 35 / 45

1. Affordable and Economical

2. 8 Station Turret

3. Easy to Operate

4. Rigid Machine Due to Slant Bed Design

5. Small Footprint

SPECIFICATION	UNIT	RT 35	RT 45
Swing Over the Bed	mm	460	460
Maximum Turning Dia.	mm	250	250
Maximum Turning Length	mm	210	210
Chuck Size	mm	165	200
X Axis Travel	mm	420	420
Z Axis Travel	mm	220	220
Spindle Nose	Type	A2-5	A2-6
Maximum Bar Capacity Through Spindle	mm	32	42
Spindle Motor Power	kw	5.5	7.5
Spindle Speed	rpm	3500	3000
Rapid Feed Rate(X/Z)	mm/min	20000	20000
Ball Screw Size X	mm	32/10	32/10
Ball Screw Size Z	mm	40/10	40/10
Linear Guideways X/Z	mm	30/35	30/35
Axis Torque X/Z	nm	7.7/7.7	7.7/7.7
Tool Type	no	BTP 63	BTP 80
No of Stations	no	8	8
Tool Size	mm	20/20	25/25
Max Boring Block	mm	32	42
Positioning Uncertainty X/Z	mm	0.003	0.003
Positioning Repeatbility X/Z	mm	0.003	0.003
Total Machine Power	hp	15	15
Machine Over All Dimensions(L x W x H)	mm x mm x mm	2250x2000x1600	2250x2000x1600
Machine Weight(Approx)	Kg	2100	2300
